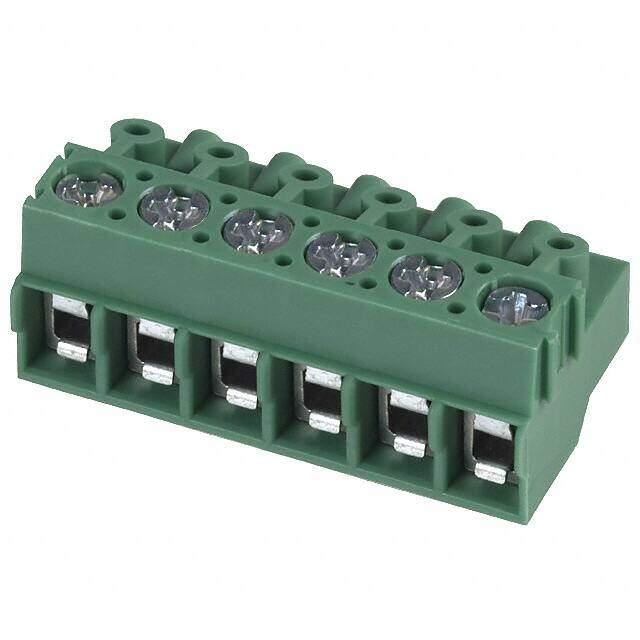

1934900
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 6POS 90DEG 5MM
PDF
/
Buying Options
Total Price: USD $1.25
Unit Price: USD $1.2496
≥1 USD $1.2496
≥10 USD $1.19328
≥100 USD $1.161072
≥500 USD $1.08504
≥1000 USD $0.998237
≥3000 USD $0.979546
Inventory: 2367
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 25mm
Length 30mm
Height 11.3mm
Technical
Test Voltage 4kV
Stripping Length 5mm
Screw Size M2.6
Current - IEC 12A
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 90°
Safety Approval UL
Number of Ways 6
Torque - Screw 0.35-0.4 Nm (3.1-3.5 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-26 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 14 AWG
Current 15A
Number of Levels 1
Max Current Rating 10A
Max Supply Voltage 250V
Voltage 300V
Number of Contacts 6
Approval Agency UL
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Insulation Height 0.449 11.40mm
Depth 15mm
Orientation Right Angle/Straight
Pitch 0.197 5.00mm
Additional Feature PA, 94V-0
Voltage - Rated 250V
Gender Female
Number of Rows 1
Color Green
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Type Plug for Unshrouded Header
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PT
Published 2005
Packaging Bulk
Physical
Weight 6.819988g
Housing Material Polyamide (PA), Nylon
Insulation Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging, Plug-In
Supply Chain
Factory Lead Time 18 Weeks
