RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

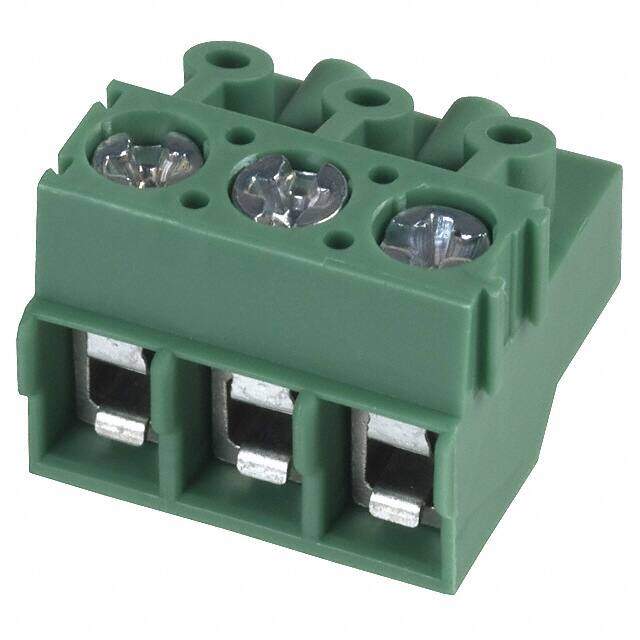

Description TERM BLOCK PLUG 3POS 90DEG 5MM
PDF
/
Buying Options
Total Price: USD $0.66
Unit Price: USD $0.659316
≥1 USD $0.659316
≥10 USD $0.621993
≥100 USD $0.586792
≥500 USD $0.553576
≥1000 USD $0.522235
Inventory: 8343
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Width 15mm
Length 15mm
Height 11.3mm

Technical

Stripping Length 5mm
Screw Size M2.6
Current - IEC 12A
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 90°
Safety Approval UL
Number of Ways 3
Torque - Screw 0.35-0.4 Nm (3.1-3.5 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-26 AWG
Number of Decks 1
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 15A
Number of Levels 1
Max Current Rating 10A
Max Supply Voltage 250V
Voltage 300V
Number of Contacts 3
Approval Agency UL
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Insulation Height 0.449 11.40mm
Depth 15mm
Orientation Right Angle/Straight
Pitch 0.197 5.00mm
Additional Feature PA, 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Type Plug for Unshrouded Header
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PT
Published 2003
Packaging Bulk

Physical

Weight 3.390008g
Housing Material Polyamide (PA), Nylon
Insulation Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
