1933231
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

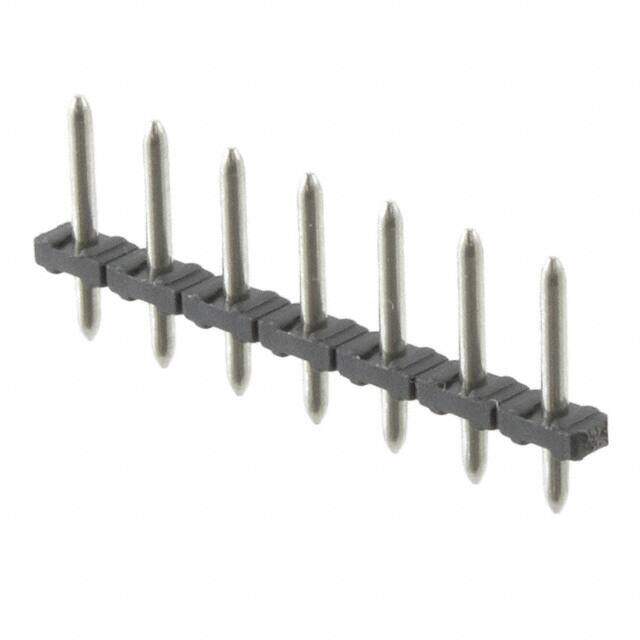

TERM BLOCK HDR 7POS VERT 5MM
PDF
/
Buying Options
Total Price: USD $0.48
Unit Price: USD $0.484
≥1 USD $0.484
Inventory: 177
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 1.160006g
Technical
Packaging Bulk
Published 2010
Series COMBICON PST
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Unshrouded
Color Black
Number of Rows 1
Voltage - Rated 250V
Additional Feature PA, UL 94V0
HTS Code 8536.69.40.40
Voltage - Rated DC 400V
Pitch 0.197 5.00mm
Orientation Straight
Depth 2.8mm
Insulation Height 0.079 2.00mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 10A
Number of Levels 1
Current 16A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 26 AWG
Contact Mating Finish Tin
Number of Decks 1
Number of Ways 7
Safety Approval UL
Header Orientation Vertical
Current - IEC 12A
Number of Positions Per Level 7
Dimensions
Length 35mm
Width 30mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
