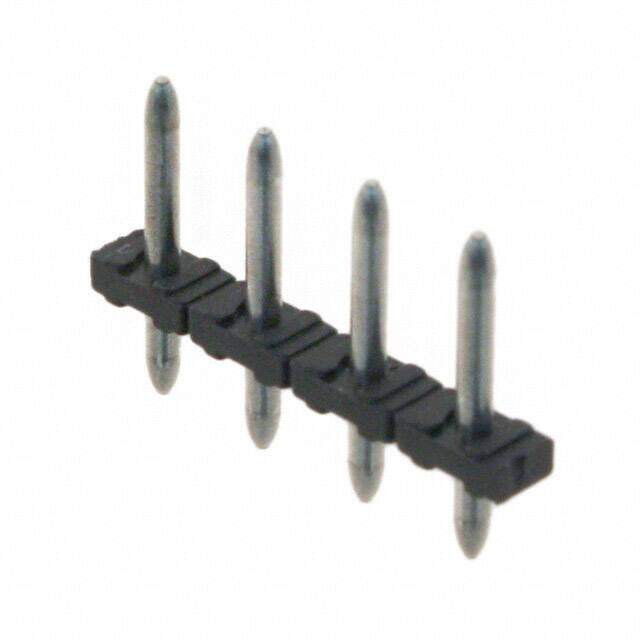

1933202 image
Favorite
1933202 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 4POS VERT 5MM
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.2816
≥1 USD $0.2816
Inventory: 5162
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 15mm
Length 20mm

Technical

Current - IEC 12A
Header Orientation Vertical
Safety Approval UL
Number of Ways 4
Number of Decks 1
Contact Mating Finish Tin
Number of Poles 4
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 12 AWG
Current 16A
Number of Levels 1
Max Current Rating 10A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.079 2.00mm
Depth 2.8mm
Orientation Straight
Pitch 0.197 5.00mm
Voltage - Rated DC 400V
Voltage - Rated 250V
Number of Rows 1
Color Black
Type Header, Male Pins, Unshrouded
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PST
Published 2003
Packaging Bulk

Physical

Weight 670.01263mg
Housing Material Polyamide (PA), Nylon
Insulation Material Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper

Supply Chain

Factory Lead Time 7 Weeks
