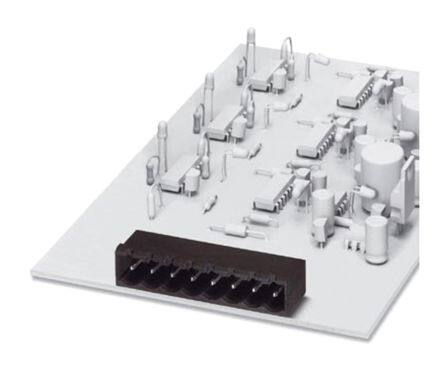

1927535
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 6 Pos 5mm pitch Through Hole Header
PDF
/
Inventory: 1123
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 32mm
Technical
Number of Positions Per Level 6
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 6
Voltage - IEC 400V
Number of Decks 1
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.114 2.90mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.350 8.89mm
Depth 12.2mm
Orientation Right Angle
Pitch 0.197 5.00mm
Additional Feature PA, UL 94V0
Voltage - Rated 250V
Gender Male
Number of Rows 1
Color Black
Number of Positions 6
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
Series COMBICON MSTBA
Published 2011
Packaging Bulk
Physical
Weight 3.369993g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 3 Weeks
