1927506
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

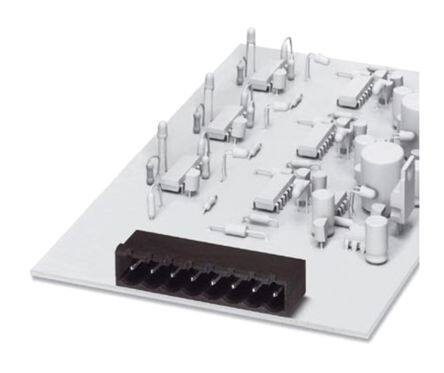

Pluggable Terminal Blocks 3 Pos 5mm pitch Through Hole Header
PDF
/
Inventory: 1245
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 3
Current - IEC 12A
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 3
Voltage - IEC 400V
Number of Decks 1
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Contact Tail Length 0.114 2.90mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.350 8.89mm
Orientation Right Angle
Pitch 0.197 5.00mm
Additional Feature PA, UL 94V0
Voltage - Rated 250V
Gender Male
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series COMBICON MSTBA
Published 2011
Packaging Bulk
Physical
Weight 3.050012g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 3 Weeks
