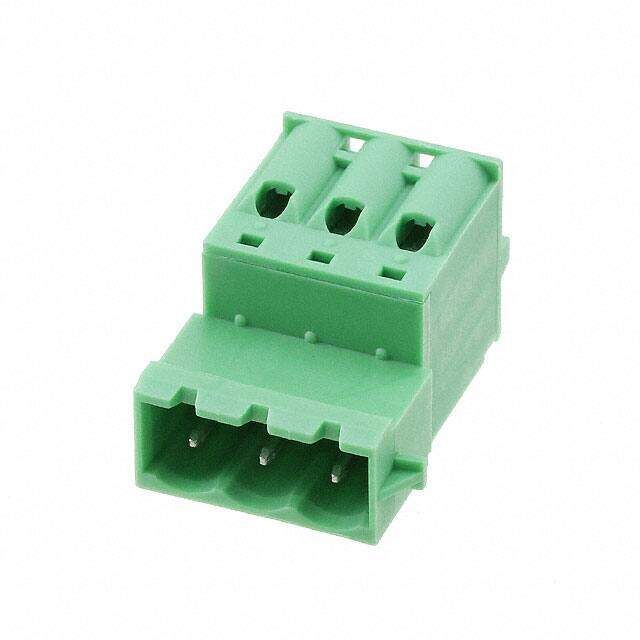

1925870 image
Favorite
1925870 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 3 Pos 5.08mm Invert Plug 24-12AWG Spring
PDF
/
Buying Options
Total Price: USD $3.5
Unit Price: USD $3.5024
≥1 USD $3.5024
≥10 USD $3.40648
≥100 USD $3.18384
≥500 USD $2.929168
≥1000 USD $2.874291
Inventory: 63
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 26.4mm
Length 15mm
Height 21.06mm

Technical

Fastening Method SPRING LOADED
Wire Cross Section 2.5 mm2
Number of Positions Per Level 3
Current - IEC 12A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 3
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-26 AWG
Number of Decks 1
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 10A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Push-In Spring
Current Rating 12A
Insulation Height 0.591 15.00mm
Pitch 0.200 5.08mm
Additional Feature PA, UL 94V0
Voltage - Rated 320V
Gender Female
Number of Rows 1
Color Green
Type Plug, Male Pins
Connector Type Plug
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Locking Ramp
Series COMBICON FKIC
Published 2010
Packaging Bulk

Physical

Weight 4.920003g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
