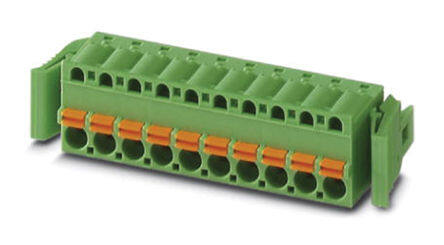

1925841
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 17 Pos 5.08mm pitch Plug 24-12AWG Spring
PDF
/
Buying Options
Total Price: USD $41.54
Unit Price: USD $41.538843
≥1 USD $41.538843
≥200 USD $16.575363
≥500 USD $16.021319
≥1000 USD $15.746923
Inventory: 1201
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 29.369993g
Technical
Packaging Bulk
Published 2014
Series COMBICON FKC
Feature Latch Lock, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Additional Feature PA, UL 94V0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Current Rating 12A
Termination Style Screwless - Push-In Spring
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Number of Ways 17
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Number of Positions Per Level 17
Wire Cross Section 2.5 mm2
Fastening Method SPRING LOADED
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
