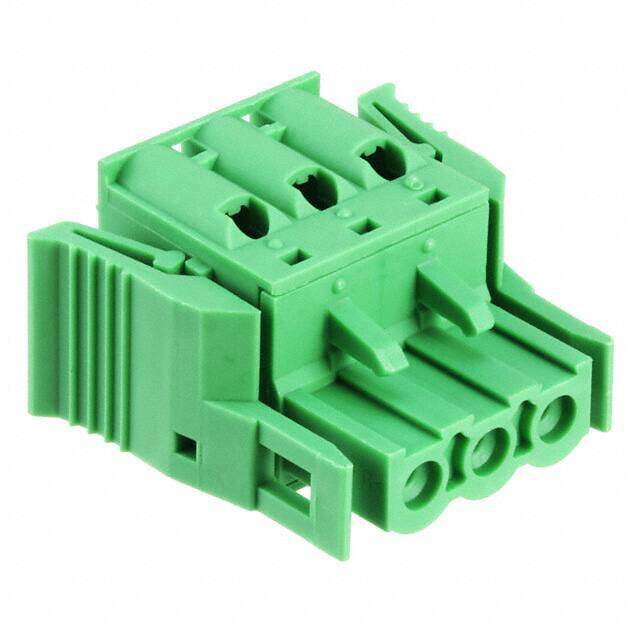

1925702
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 5.08mm pitch Plug 24-12AWG Spring
PDF
/
Buying Options
Total Price: USD $4.18
Unit Price: USD $4.18
≥1 USD $4.18
≥10 USD $4.06736
≥100 USD $3.8016
≥500 USD $3.497472
≥1000 USD $3.432
Inventory: 104
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 28.66mm
Length 15mm
Height 25.1mm
Technical
Fastening Method SPRING LOADED
Wire Cross Section 2.5 mm2
Number of Positions Per Level 3
Current - IEC 12A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 3
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-26 AWG
Number of Decks 1
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 10A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Push-In Spring
Current Rating 12A
Insulation Height 0.591 15.00mm
Pitch 0.200 5.08mm
Additional Feature PA, UL 94V0
Voltage - Rated 250V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Socket
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Latch Lock, Retention Latches (Non-Wire Side)
Series COMBICON FKC
Published 2003
Packaging Bulk
Physical
Weight 6.150004g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
