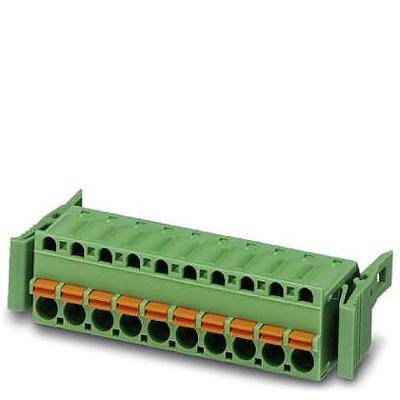

1925346
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Socket enclosure - cable QC Total number of pins 3 Phoenix Contact 1925346 Contact spacing: 3.81 mm 50 pc(s)
PDF
/
Inventory: 5465
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Technical
Packaging Bulk
Published 2014
Series COMBICON QC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type IDC, IDT, Socket
Type Plug, Female Sockets
Number of Positions 3
Color Black
Voltage - Rated 200V
Wire Gauge or Range - mm2 0.34-0.5mm2
Plug Wire Entry 180°
Voltage - IEC 400V
Wire Gauge or Range - AWG 20-24 AWG
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 24 AWG
Number of Levels 1
Termination Style IDC
Current Rating 6A
Insulation Height 0.508 12.90mm
Pitch 0.150 3.81mm
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 22.3mm
Length 12.22mm
Height 12.9mm
