RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

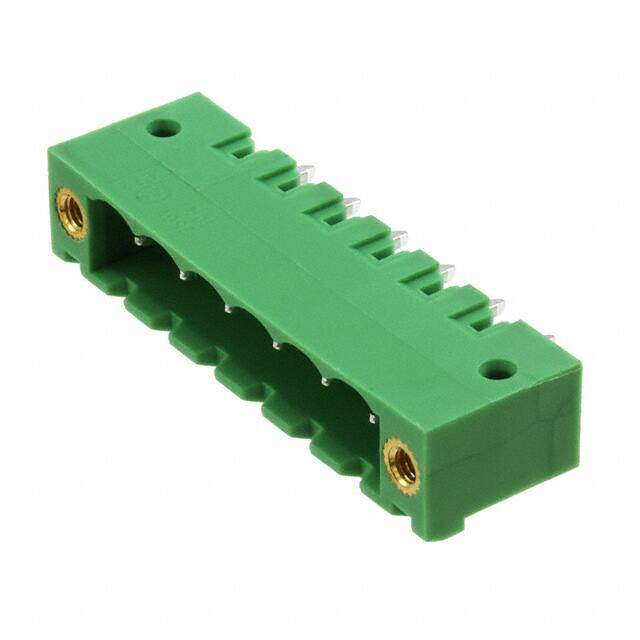

Description Pluggable Terminal Blocks 6 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $2.82
Unit Price: USD $2.8248
≥1 USD $2.8248
Inventory: 477
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 3.190002g

Technical

Packaging Bulk
Published 2001
Series COMBICON MSTBV
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PA, UL 94V0
Pitch 0.200 5.08mm
Insulation Height 0.472 12.00mm
Reach Compliance Code unknown
Current Rating 16A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Number of Levels 1
Current 16A
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 400V
Number of Ways 6
Safety Approval UL
Header Orientation Vertical
Number of Positions Per Level 6

Dimensions

Height 15.9mm
Length 8.6mm
Width 40.64mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
