1924389
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

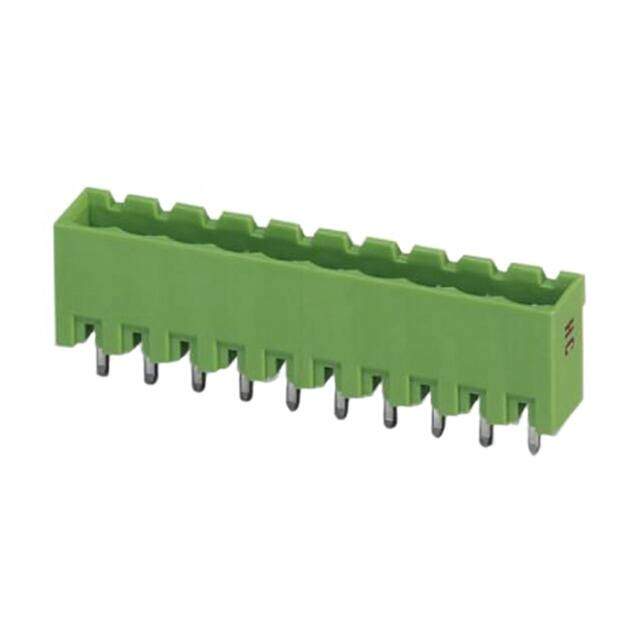

Pluggable Terminal Blocks 10 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $2.87
Unit Price: USD $2.8688
≥1 USD $2.8688
≥10 USD $2.78784
≥100 USD $2.60568
≥500 USD $2.397208
≥1000 USD $2.381773
Inventory: 173
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 3.38g
Technical
Packaging Bulk
Published 2001
Series COMBICON MSTBVA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PA, UL 94V0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.472 12.00mm
Current Rating 16A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Number of Levels 1
Current 16A
Number of Poles 10
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 400V
Number of Ways 10
Safety Approval UL
Header Orientation Vertical
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
