1924363
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

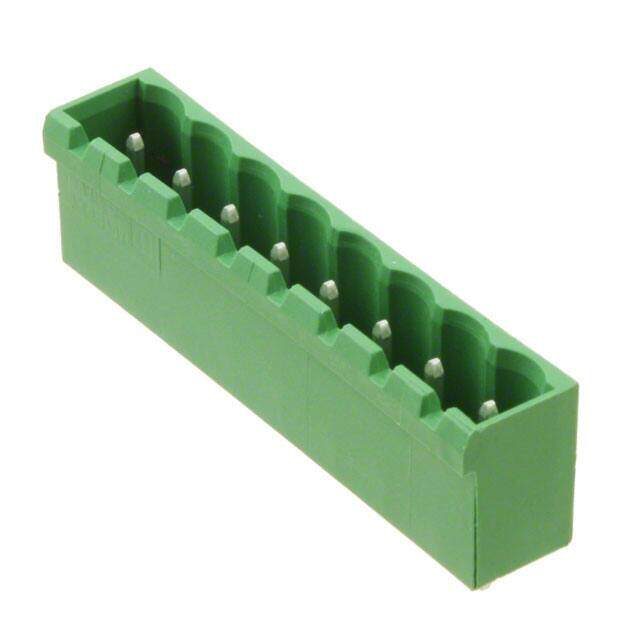

Pluggable Terminal Blocks 8 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $2.29
Unit Price: USD $2.288
≥1 USD $2.288
≥10 USD $2.22904
≥100 USD $2.08296
≥500 USD $1.916288
≥1000 USD $1.880454
Inventory: 1392
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 42.64mm
Length 8.6mm
Height 15.9mm
Technical
Fastening Method CONNECTOR
Number of Positions Per Level 8
Header Orientation Vertical
Safety Approval CB; CCA; CUL; EAC; UL; VDE
Number of Ways 8
Voltage - IEC 400V
Number of Decks 1
Current 16A
Number of Levels 1
Max Current Rating 16A
Contact Tail Length 0.154 3.90mm
Voltage 300V
Termination Style Solder
Current Rating 16A
Insulation Height 0.472 12.00mm
Depth 8.6mm
Orientation Straight
Pitch 0.200 5.08mm
Additional Feature STANDARD: UL 94V-0, PA
Voltage - Rated 250V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBVA
Published 2001
Packaging Bulk
Physical
Weight 2.719995g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
