RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

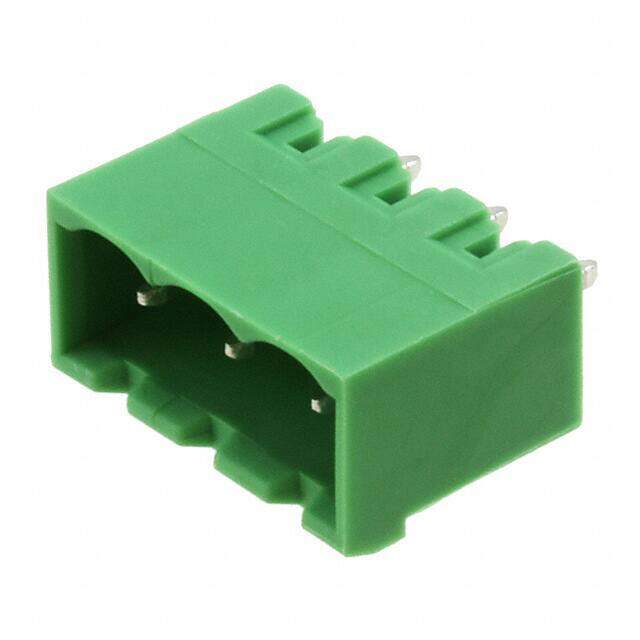

Description Pluggable Terminal Blocks 3 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $0.93
Unit Price: USD $0.9328
≥1 USD $0.9328
≥10 USD $0.9064
≥100 USD $0.84744
≥500 USD $0.77968
≥1000 USD $0.765037
Inventory: 583
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 1.170013g

Technical

Packaging Bulk
Published 2001
Series COMBICON MSTBVA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PA, UL 94V0
Pitch 0.200 5.08mm
Depth 8.6mm
Insulation Height 0.472 12.00mm
Current Rating 16A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Max Current Rating 12A
Number of Levels 1
Current 16A
Number of Decks 1
Voltage - IEC 400V
Number of Ways 3
Safety Approval UL
Header Orientation Vertical

Dimensions

Height 15.9mm
Length 17.24mm
Width 17.24mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
