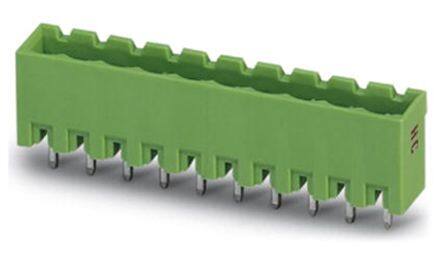

1924282
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 11 Pos 5mm pitch Through Hole Header
PDF
/
Inventory: 1164
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Header Orientation Vertical
Safety Approval UL
Number of Ways 11
Voltage - IEC 630V
Number of Decks 1
Contact Mating Finish Tin
Current 16A
Number of Levels 1
Contact Tail Length 0.154 3.90mm
Voltage 300V
Termination Style Solder
Current Rating 16A
Insulation Height 0.472 12.00mm
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V0
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 11
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBVA
Published 2001
Packaging Bulk
Physical
Weight 3.660008g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
