RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

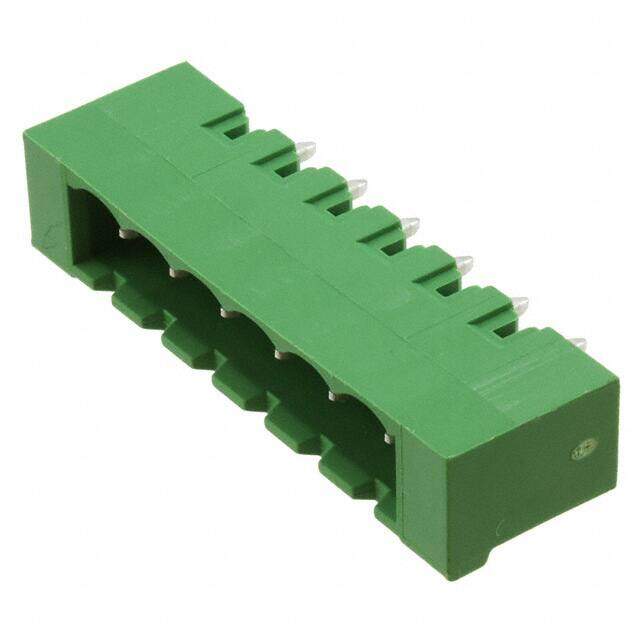

Description Pluggable Terminal Blocks 6 Pos 5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $1.59
Unit Price: USD $1.5928
≥1 USD $1.5928
Inventory: 86
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 32mm

Technical

Header Orientation Vertical
Safety Approval UL
Number of Ways 6
Voltage - IEC 630V
Number of Decks 1
Contact Mating Finish Tin
Current 16A
Number of Levels 1
Max Current Rating 16A
Contact Tail Length 0.154 3.90mm
Voltage 300V
Termination Style Solder
Current Rating 16A
Insulation Height 0.472 12.00mm
Depth 8.6mm
Pitch 0.197 5.00mm
Additional Feature PA, UL 94V0
Voltage - Rated 250V
Gender Male
Number of Rows 1
Color Green
Number of Positions 6
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBVA
Published 2001
Packaging Bulk

Physical

Weight 2.120006g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 4 Weeks
