1924091
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

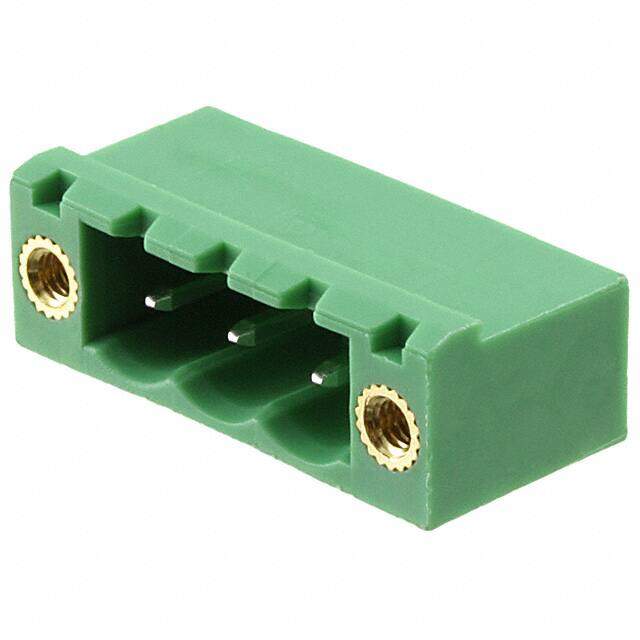

Pluggable Terminal Blocks 3 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $2.75
Unit Price: USD $2.7456
≥1 USD $2.7456
≥10 USD $2.66904
≥100 USD $2.4948
≥500 USD $2.295216
≥1000 USD $2.252237
Inventory: 1775
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 25.4mm
Length 25.4mm
Height 12mm
Technical
Number of Positions Per Level 3
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 3
Voltage - IEC 400V
Number of Decks 1
Current 16A
Number of Levels 1
Max Current Rating 16A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 16A
Reach Compliance Code unknown
Insulation Height 0.339 8.61mm
Depth 12mm
Orientation Right Angle
Pitch 0.200 5.08mm
Additional Feature PA, UL 94V0
Voltage - Rated 250V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON MSTB
Published 2001
Packaging Bulk
Physical
Weight 2.259996g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
