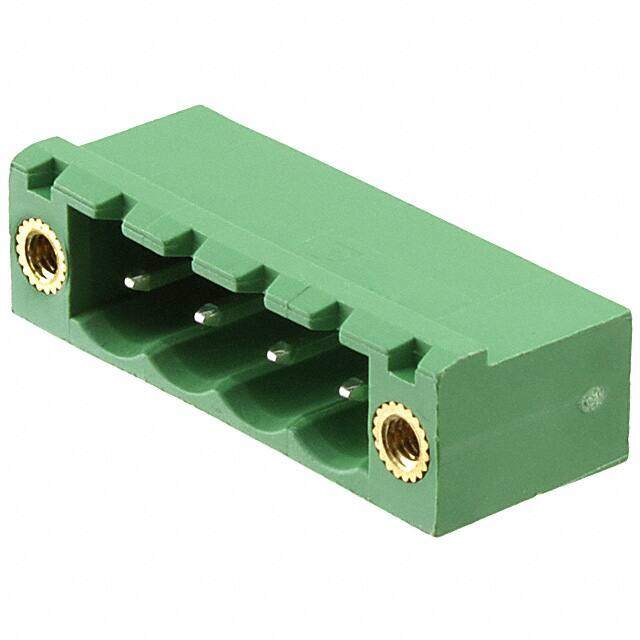

1923995
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 4 Pos 5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $2.62
Unit Price: USD $2.6224
≥1 USD $2.6224
Inventory: 127
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 12mm
Technical
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 4
Voltage - IEC 400V
Number of Decks 1
Contact Mating Finish Tin
Current 16A
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 16A
Insulation Height 0.339 8.61mm
Pitch 0.197 5.00mm
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 4
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON MSTB
Published 2001
Packaging Bulk
Physical
Weight 2.55999g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
