1923898
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

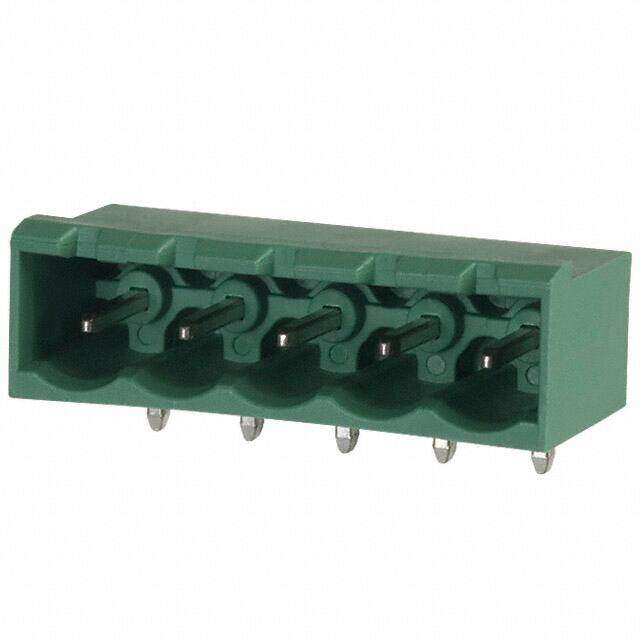

Terminal block; PCB; Header; Male Pins; Shrouded (4 Side); 5 position; 16A; 400V; Solder
PDF
/
Buying Options
Total Price: USD $1.56
Unit Price: USD $1.5576
≥1 USD $1.5576
≥10 USD $1.51712
≥100 USD $1.41768
≥500 USD $1.304248
≥1000 USD $1.279837
Inventory: 117
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 1.799996g
Technical
Packaging Bulk
Published 2001
Series COMBICON MSTBA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 5
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 250V
Additional Feature STANDARD: UL 94V-0, PA
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Current Rating 16A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 16A
Number of Levels 1
Current 16A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Number of Ways 5
Safety Approval CB; CCA; CUL; EAC; UL; VDE
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR
Dimensions
Length 12mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
