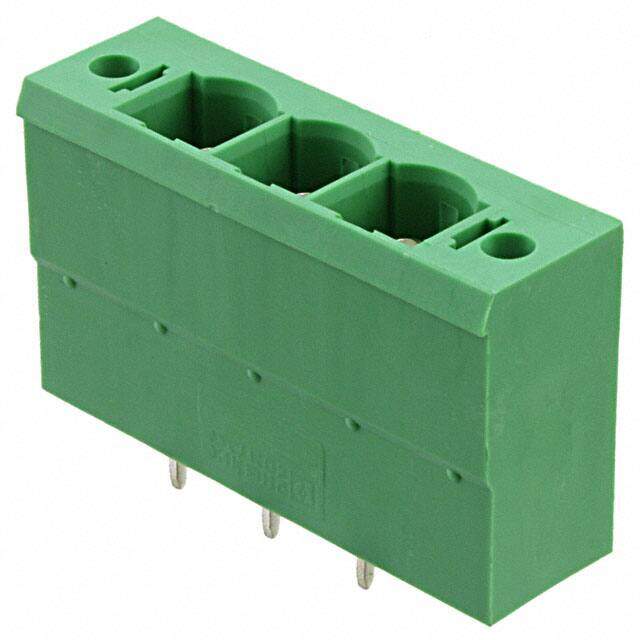

1922572 image
Favorite
1922572 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 3 Pos 10.16mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $10.01
Unit Price: USD $10.0144
≥1 USD $10.0144
≥10 USD $9.74512
≥100 USD $9.108
≥500 USD $8.379448
≥1000 USD $7.741782
≥3000 USD $7.37755
Inventory: 135
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Length 48.24mm

Technical

Number of Positions Per Level 3
Header Orientation Vertical
Number of Ways 3
Number of Decks 1
Contact Mating Finish Silver
Current 5A
Number of Levels 1
Max Current Rating 66A
Contact Tail Length 0.157 4.00mm
Voltage 600V
Termination Style Solder
Current Rating 76A
Reach Compliance Code unknown
Insulation Height 1.114 28.30mm
Orientation Straight
Pitch 0.400 10.16mm
Voltage - Rated 300V
Gender Male
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON PCV
Published 2002
Packaging Bulk

Physical

Weight 15.600005g
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 4 Weeks
