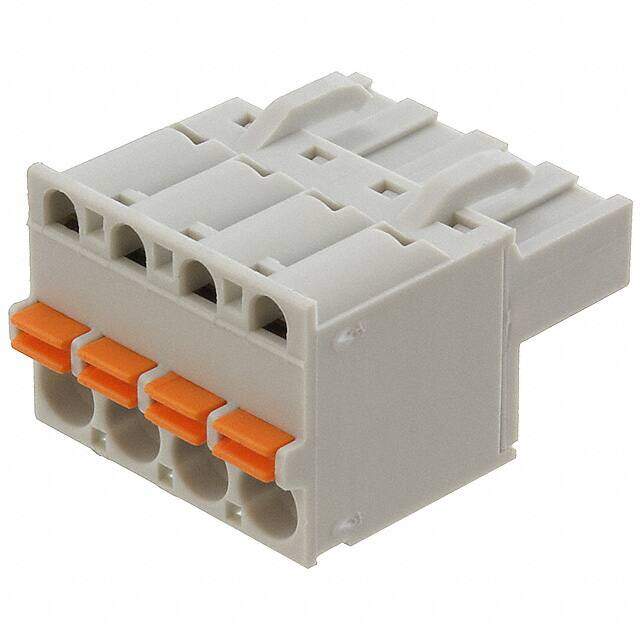

1921900
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 4 Pos 5mm pitch Plug 24-12AWG Spring
PDF
/
Buying Options
Total Price: USD $4.05
Unit Price: USD $4.048
≥1 USD $4.048
≥10 USD $3.94064
≥100 USD $3.6828
≥500 USD $3.388176
≥1000 USD $3.324746
Inventory: 651
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 7.019994g
Technical
Packaging Bulk
Published 2010
Series COMBICON FKCT
Feature Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Number of Positions 4
Color Gray
Voltage - Rated 250V
Pitch 0.197 5.00mm
Insulation Height 0.591 15.00mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Screwless - Leg Spring, Push-In Spring
Housing Color Grey
Voltage 300V
Number of Levels 1
Current 12A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge or Range - AWG 12-26 AWG
Current - UL 10A
Voltage - IEC 630V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Dimensions
Height 20.1mm
Length 15mm
Width 25.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
