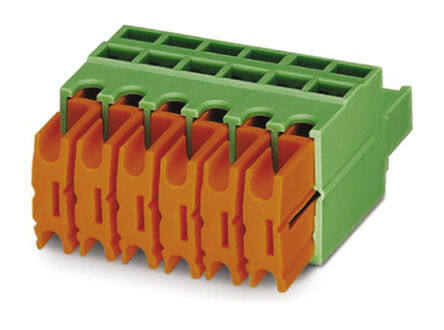

1921683
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 5.08mm pitch Plug 20-18 AWG IDC
PDF
/
Inventory: 1124
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 6.190005g
Technical
Packaging Bulk
Published 2010
Series COMBICON QC
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type IDC, IDT, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 500V
Additional Feature PA, UL 94V0
Pitch 0.197 5.00mm
Insulation Height 0.591 15.00mm
Current Rating 10A
Termination Style IDC
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 18 AWG
Voltage - UL 300V
Number of Decks 1
Wire Gauge or Range - AWG 18-22 AWG
Voltage - IEC 1kV
Number of Ways 3
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.5-1mm2
Number of Positions Per Level 3
Fastening Method IDC
Dimensions
Height 15.9mm
Length 15mm
Width 28.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
