1916834
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

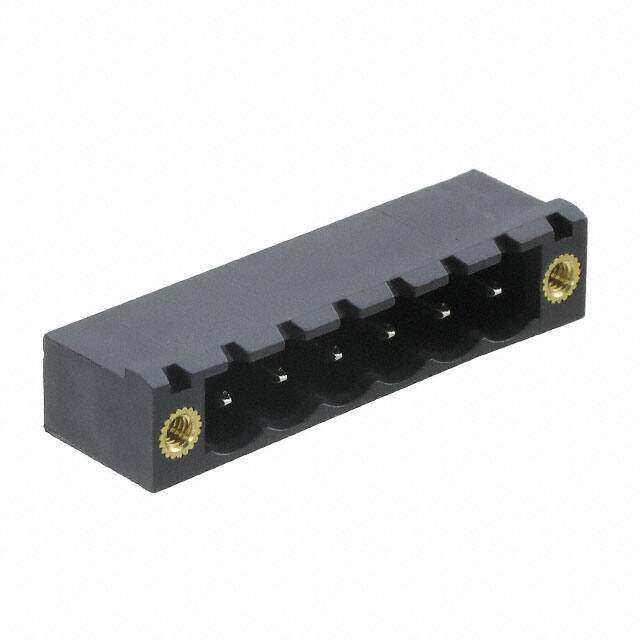

TERM BLOCK HDR 6POS 90DEG 5.08MM
PDF
/
Buying Options
Total Price: USD $3
Unit Price: USD $3.0008
≥1 USD $3.0008
Inventory: 49
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 40.64mm
Length 12mm
Height 12.1mm
Technical
Header Orientation 90°, Right Angle
Safety Approval CB; CCA; CSA; CUL; GOST; UL
Number of Ways 6
Number of Decks 1
Current 15A
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.339 8.61mm
Pitch 0.200 5.08mm
Voltage - Rated 250V
Number of Rows 1
Color Black
Number of Positions 6
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON MSTB
Published 2011
Packaging Bulk
Physical
Weight 3.770005g
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
