1916436
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

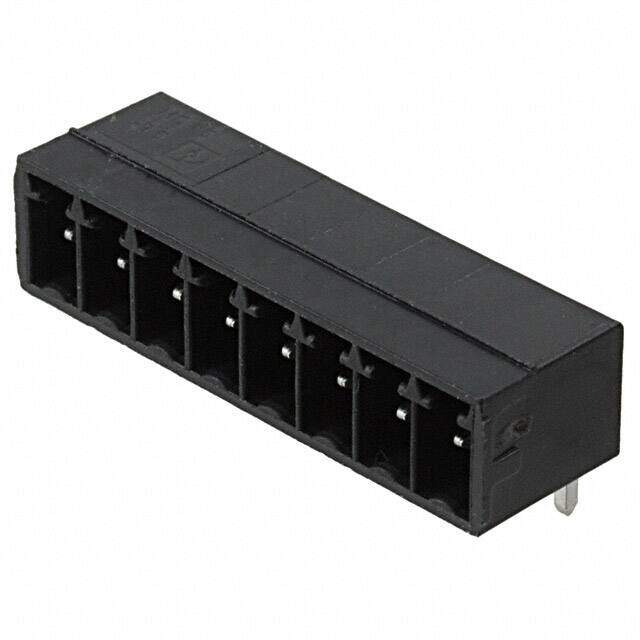

TERM BLOCK HDR 8POS 90DEG 3.5MM
PDF
/
Buying Options
Total Price: USD $2.36
Unit Price: USD $2.3584
≥1 USD $2.3584
Inventory: 98
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 38.3mm
Length 9.2mm
Height 10.65mm
Technical
Header Orientation 90°, Right Angle
Safety Approval CB; CCA; CSA; CUL; GOST; UL
Number of Ways 8
Voltage - IEC 160V
Number of Decks 1
Current 8A
Number of Levels 1
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.285 7.25mm
Pitch 0.138 3.50mm
Voltage - Rated 160V
Number of Rows 1
Color Black
Number of Positions 8
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MC
Published 2011
Packaging Bulk
Physical
Weight 1.890006g
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
