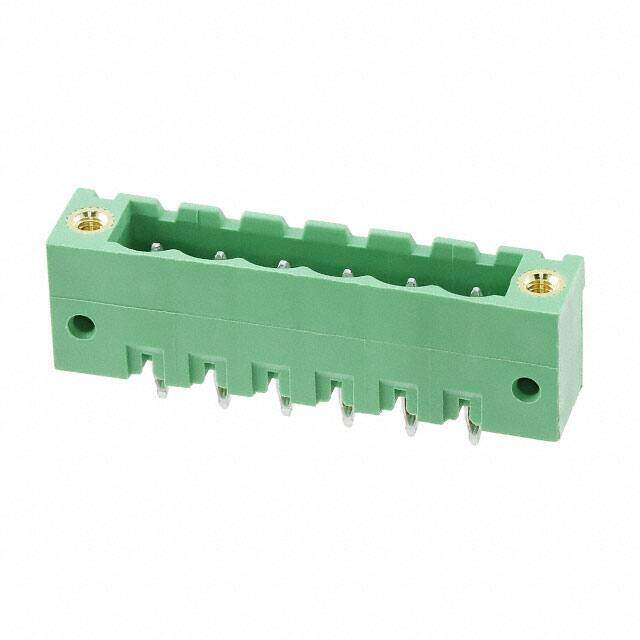

1915259
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 6 Pos 5.08mm pitch Press In Header
PDF
/
Inventory: 1187
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Header Orientation Vertical
Safety Approval UL
Number of Ways 6
Voltage - IEC 320V
Number of Decks 1
Contact Mating Finish Tin
Current 12A
Number of Levels 1
Contact Tail Length 0.154 3.90mm
Voltage 300V
Termination Style Press-Fit
Current Rating 12A
Insulation Height 0.472 12.00mm
Pitch 0.200 5.08mm
Additional Feature PBT, UL 94V-0
Voltage - Rated 200V
Number of Rows 1
Color Green
Number of Positions 6
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON EMSTBV
Published 2011
Packaging Bulk
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 3 Weeks
