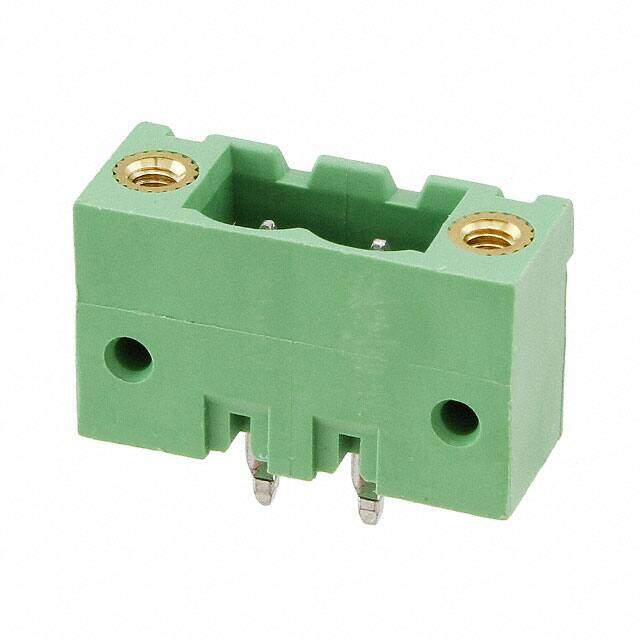

1915217
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 2 Pos 5.08mm pitch Press In Header
PDF
/
Inventory: 1187
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 2
Color Green
Number of Rows 1
Voltage - Rated 200V
Additional Feature PBT, UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.472 12.00mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Press-Fit
Voltage 300V
Contact Tail Length 0.154 3.90mm
Number of Levels 1
Current 12A
Number of Decks 1
Voltage - IEC 320V
Number of Ways 2
Safety Approval UL
Header Orientation Vertical
Feature Mating and Mounting Flange
Series COMBICON EMSTBV
Published 2011
Packaging Bulk
Dimensions
Height 15.9mm
Length 8.6mm
Width 20.32mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Physical
Weight 2.310004g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 5 Weeks
