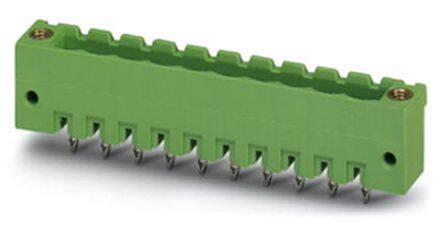

1915165
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK
PDF
/
Inventory: 1107
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Silver, Tin
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Packaging Bulk
Published 2015
Series COMBICON EMSTBV
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 12
Color Green
Number of Rows 1
Additional Feature PBT, UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Insulation Height 0.472 12.00mm
Termination Style Press-Fit
Contact Tail Length 0.154 3.90mm
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 320V
Number of Ways 12
Safety Approval UL
Header Orientation Vertical
Current - IEC 12A
Rated Voltage 200V
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
