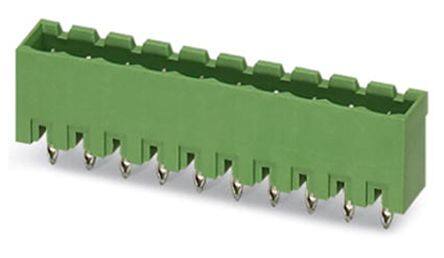

1915039
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK
PDF
/
Inventory: 1144
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Rated Voltage 200V
Current - IEC 12A
Header Orientation Vertical
Safety Approval UL
Number of Ways 19
Voltage - IEC 320V
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Contact Tail Length 0.154 3.90mm
Termination Style Press-Fit
Insulation Height 0.472 12.00mm
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature PBT, UL 94V-0
Number of Rows 1
Color Green
Number of Positions 19
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
Series COMBICON EMSTBVA
Published 2015
Packaging Bulk
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
