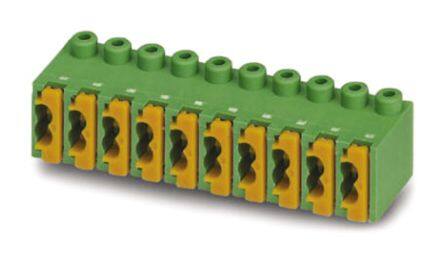

1914043
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
PBT 94V-0 Terminal Block Header
PDF
/
Inventory: 1151
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Fastening Method SPRING LOADED
Wire Cross Section 0.5 mm2
Wire Strip Length 6.5mm
Wire Gauge or Range - mm2 0.12-0.5mm2
Plug Wire Entry 90°
Safety Approval UL
Number of Ways 13
Voltage - IEC 250V
Wire Gauge or Range - AWG 20-28 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 28 AWG
Current 4A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 4A
Insulation Height 0.335 8.51mm
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Additional Feature PBT, 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
Number of Positions 13
Type Plug for Unshrouded Header
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON FK-MPT
Published 2011
Packaging Bulk
Physical
Weight 4.409995g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 13 Weeks
