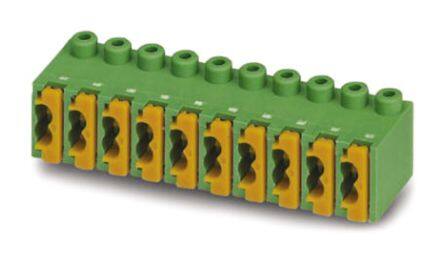

1913992
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 9 Pos 3.5mm pitch Plug 26-20AWG Spring
PDF
/
Inventory: 1135
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Free Hanging, Through Hole
Mounting Type Free Hanging (In-Line)
Housing Material Polybutylene Terephthalate (PBT)
Weight 2.930008g
Technical
Packaging Bulk
Published 2006
Series COMBICON FK-MPT
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Type Plug for Unshrouded Header
Color Green
Number of Rows 1
Voltage - Rated 160V
Pitch 0.138 3.50mm
Orientation Straight
Insulation Height 0.335 8.51mm
Current Rating 4A
Termination Style Screwless - Spring Cage, Tension Clamp
Number of Contacts 9
Voltage 300V
Max Current Rating 4A
Number of Levels 1
Current 4A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 20 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 20-28 AWG
Voltage - IEC 250V
Number of Ways 9
Safety Approval UL
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.12-0.5mm2
Wire Strip Length 6.5mm
Wire Cross Section 0.5 mm2
Fastening Method SPRING LOADED
Dimensions
Height 2mm
Length 9.5mm
Width 32mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
