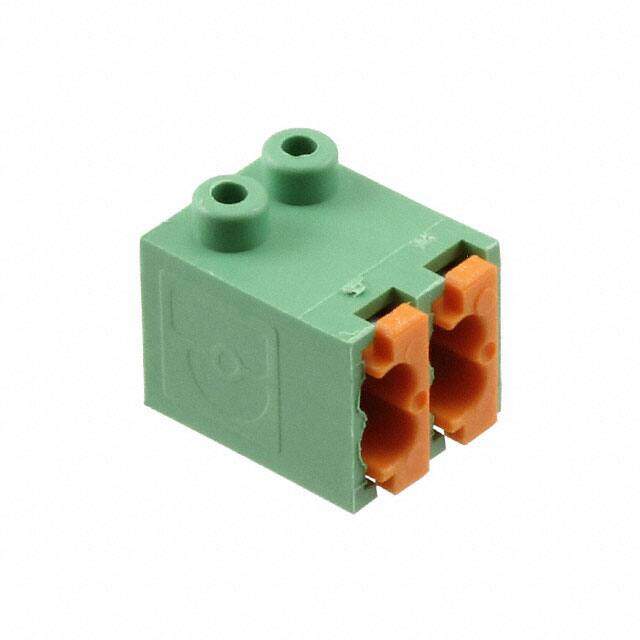

1913921
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Spring Cage 2 POS 3.5mm Solder ST Thru-Hole 4A
PDF
/
Buying Options
Total Price: USD $0.8
Unit Price: USD $0.8008
≥1 USD $0.8008
Inventory: 121
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper, Tin
Mount Free Hanging, Through Hole
Mounting Type Free Hanging (In-Line)
Housing Material Polybutylene Terephthalate (PBT)
Weight 519.986953mg
Technical
Packaging Bulk
Published 2010
Series COMBICON FK-MPT
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Plug for Unshrouded Header
Color Green
Number of Rows 1
Voltage - Rated 160V
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Orientation Straight
Depth 9.5mm
Insulation Height 0.335 8.51mm
Reach Compliance Code unknown
Current Rating 4A
Termination Style Screwless - Spring Cage, Tension Clamp
Approval Agency UL
Number of Contacts 2
Voltage 300V
Max Supply Voltage 160V
Max Current Rating 4A
Number of Levels 1
Current 4A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 20 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 20-28 AWG
Voltage - IEC 250V
Number of Ways 2
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.12-0.5mm2
Stripping Length 6.5mm
Fastening Method SPRING LOADED
Dimensions
Height 2mm
Length 7.5mm
Width 9.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
