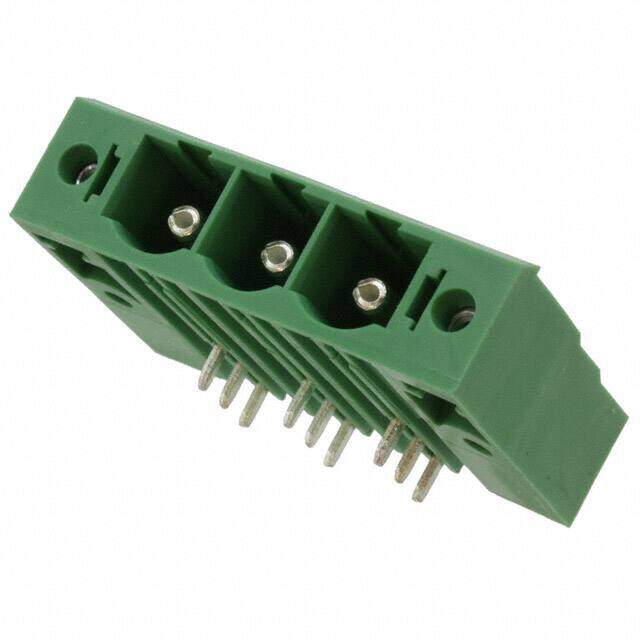

1913727
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Shrouded Header HDR 3 POS 10.16mm Solder RA Thru-Hole
PDF
/
Buying Options
Total Price: USD $8.4
Unit Price: USD $8.404825
≥1 USD $8.404825
≥10 USD $7.929082
≥100 USD $7.480264
≥500 USD $7.056857
≥1000 USD $6.657412
Inventory: 3448
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Weight 15.009995g
Technical
Packaging Bulk
Published 2002
Series COMBICON PC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Color Green
Number of Rows 1
Voltage - Rated 1kV
Pitch 0.400 10.16mm
Orientation Right Angle
Depth 32mm
Insulation Height 0.528 13.40mm
Reach Compliance Code unknown
Current Rating 76A
Termination Style Solder
Voltage 600V
Contact Tail Length 0.157 4.00mm
Max Current Rating 5A
Number of Levels 1
Current 66A
Contact Mating Finish Silver
Number of Decks 1
Voltage - IEC 1kV
Number of Ways 3
Header Orientation 90°, Right Angle
Current - IEC 41A
Number of Positions Per Level 3
Dimensions
Length 48.24mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
