1913714
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

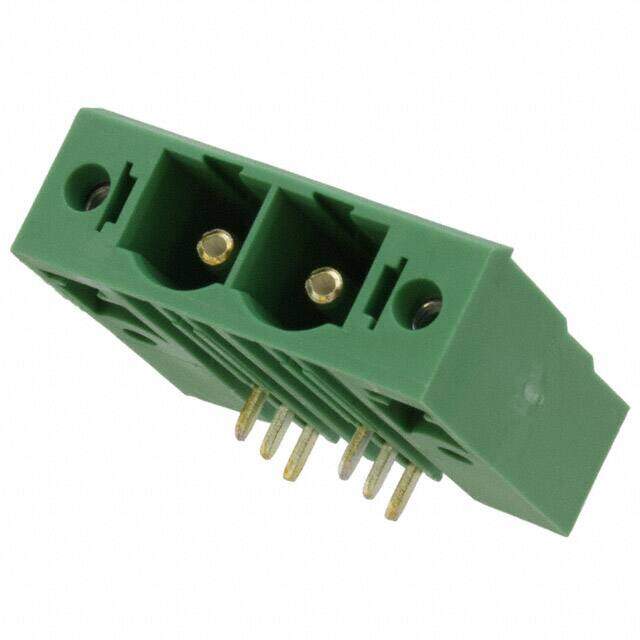

Header, Pitch: 10.16 mm, Number of positions: 2, Color: green
PDF
/
Buying Options
Total Price: USD $6.86
Unit Price: USD $6.863703
≥1 USD $6.863703
≥10 USD $6.475186
≥100 USD $6.108673
≥500 USD $5.762897
≥1000 USD $5.436694
Inventory: 3378
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Weight 11.92999g
Technical
Packaging Bulk
Published 2002
Series COMBICON PC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 1kV
HTS Code 8536.69.40.40
Pitch 0.400 10.16mm
Orientation Right Angle
Depth 34mm
Insulation Height 0.528 13.40mm
Reach Compliance Code unknown
Current Rating 76A
Termination Style Solder
Voltage 600V
Contact Tail Length 0.157 4.00mm
Max Current Rating 55A
Number of Levels 1
Current 66A
Contact Mating Finish Silver
Number of Decks 1
Current - UL 5A
Voltage - IEC 1kV
Number of Ways 2
Header Orientation 90°, Right Angle
Current - IEC 41A
Number of Positions Per Level 2
Fastening Method CONNECTOR
Dimensions
Length 38.08mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
