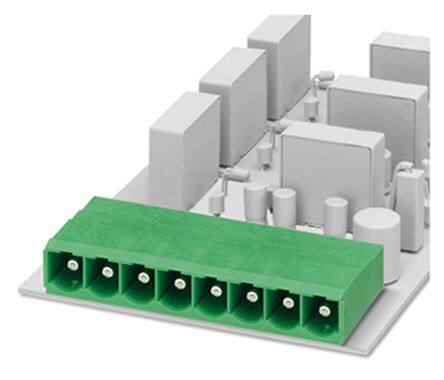

1913675
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Fixed Terminal Blocks PC 16/ 5-G-10.16
PDF
/
Inventory: 1099
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 18.530014g
Technical
Packaging Bulk
Published 2011
Series COMBICON PC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 5
Color Green
Number of Rows 1
Voltage - Rated 1kV
Pitch 0.400 10.16mm
Depth 4mm
Insulation Height 0.539 13.70mm
Current Rating 76A
Termination Style Solder
Voltage 600V
Contact Tail Length 0.157 4.00mm
Number of Levels 1
Current 5A
Contact Mating Finish Silver
Number of Decks 1
Voltage - IEC 1kV
Number of Ways 5
Header Orientation 90°, Right Angle
Current - IEC 41A
Dimensions
Length 5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
