1913633
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

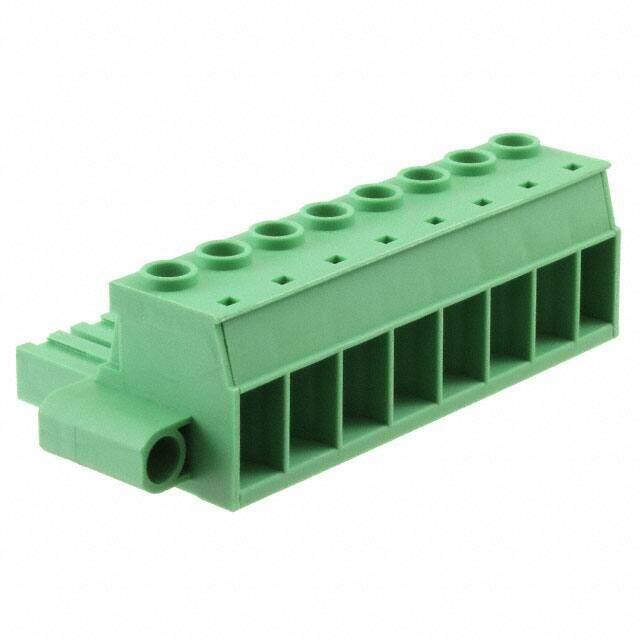

Pluggable Terminal Blocks 8 Pos 10.16mm pitch Plug 18-8 AWG Screw
PDF
/
Buying Options
Total Price: USD $35.87
Unit Price: USD $35.8688
≥1 USD $35.8688
≥10 USD $34.88936
≥100 USD $32.606816
≥500 USD $29.998232
≥1000 USD $27.71567
Inventory: 118
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 68.889993g
Technical
Packaging Bulk
Published 2002
Series COMBICON PC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 8
Color Green
Number of Rows 1
Voltage - Rated 1kV
Additional Feature PA, UL 94V0
Pitch 0.400 10.16mm
Insulation Height 1.085 27.55mm
Reach Compliance Code unknown
Current Rating 41A
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Number of Levels 1
Current 50A
Wire Gauge (Max) 8 AWG
Wire Gauge (Min) 18 AWG
Contact Mating Finish Silver
Number of Decks 1
Wire Gauge or Range - AWG 8-20 AWG
Voltage - IEC 1kV
Torque - Screw 1.2-1.5 Nm (10.6-13.3 Lb-In)
Number of Ways 8
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.75-10mm2
Wire Strip Length 12mm
Current - IEC 41A
Screw Size M4
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
