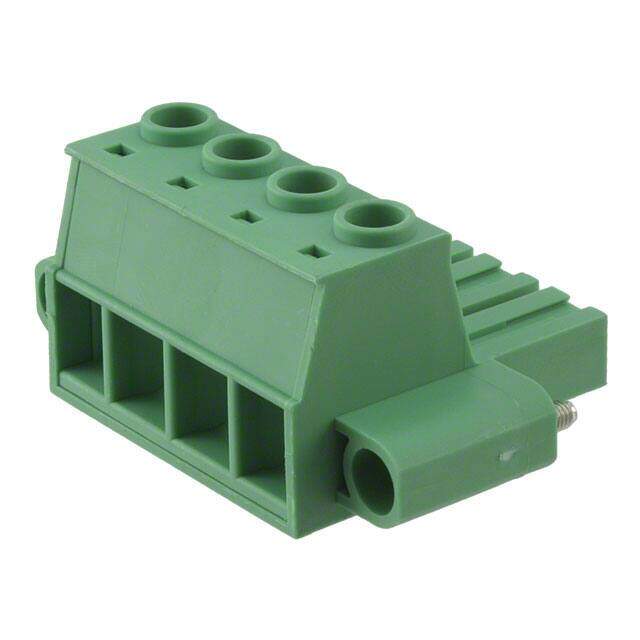

1913594
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Terminal Block F 4 POS 10.16mm Screw RA Panel Mount 41A
PDF
/
Buying Options
Total Price: USD $17.75
Unit Price: USD $17.748156
≥1 USD $17.748156
≥10 USD $16.74354
≥100 USD $15.795798
≥500 USD $14.90169
≥1000 USD $14.058208
Inventory: 6054
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 58.4mm
Length 58.4mm
Height 39mm
Technical
Screw Size M4
Wire Strip Length 12mm
Wire Gauge or Range - mm2 0.75-10mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 4
Torque - Screw 1.2-1.5 Nm (10.6-13.3 Lb-In)
Voltage - IEC 1kV
Wire Gauge or Range - AWG 8-20 AWG
Number of Decks 1
Wire Gauge (Min) 8 AWG
Wire Gauge (Max) 20 AWG
Current 50A
Number of Levels 1
Max Current Rating 41A
Max Supply Voltage 1kV
Voltage 600V
Number of Contacts 4
Termination Style Screw - Rising Cage Clamp
Current Rating 41A
Insulation Height 1.085 27.55mm
Depth 39mm
Orientation Right Angle
Pitch 0.400 10.16mm
Voltage - Rated 1kV
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON PC
Published 2002
Packaging Bulk
Physical
Weight 36.669995g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Plating Silver
Supply Chain
Factory Lead Time 4 Weeks
