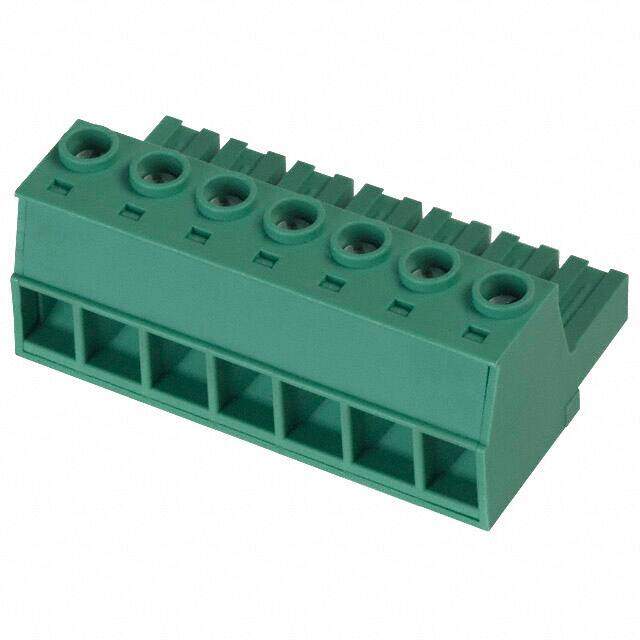

1913552 image
Favorite
1913552 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 7POS STR 10.16MM
PDF
/
Buying Options
Total Price: USD $71.88
Unit Price: USD $71.876023
≥1 USD $71.876023
≥200 USD $28.678988
≥500 USD $27.720571
≥1000 USD $27.247927
Inventory: 1912
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 57.770006g

Technical

Packaging Bulk
Published 2002
Series COMBICON PC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 7
Color Green
Number of Rows 1
Voltage - Rated 1kV
Additional Feature PA, UL 94V0
HTS Code 8536.69.40.40
Pitch 0.400 10.16mm
Insulation Height 1.085 27.55mm
Reach Compliance Code unknown
Current Rating 41A
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Number of Levels 1
Current 50A
Wire Gauge (Max) 8 AWG
Wire Gauge (Min) 18 AWG
Contact Mating Finish Silver
Number of Decks 1
Wire Gauge or Range - AWG 8-20 AWG
Voltage - IEC 1kV
Torque - Screw 1.2-1.5 Nm (10.6-13.3 Lb-In)
Number of Ways 7
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.75-10mm2
Wire Strip Length 12mm
Current - IEC 41A
Screw Size M4

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
