1913549
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

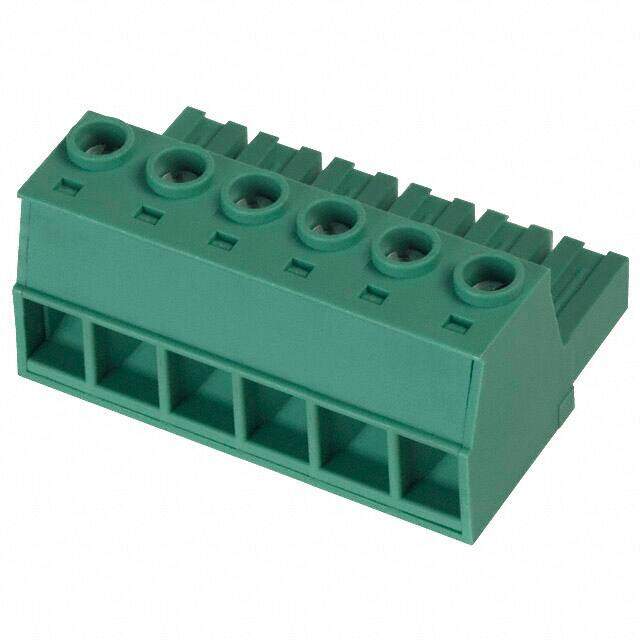

TERM BLOCK PLUG 6POS STR 10.16MM
PDF
/
Buying Options
Total Price: USD $25.41
Unit Price: USD $25.4144
≥1 USD $25.4144
≥10 USD $24.72008
≥100 USD $23.102816
≥500 USD $21.254464
≥1000 USD $19.63727
Inventory: 130
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 60mm
Length 27.55mm
Height 39mm
Technical
Screw Size M4
Current - IEC 41A
Wire Strip Length 12mm
Wire Gauge or Range - mm2 0.75-10mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 6
Torque - Screw 1.2-1.5 Nm (10.6-13.3 Lb-In)
Voltage - IEC 1kV
Wire Gauge or Range - AWG 8-20 AWG
Number of Decks 1
Wire Gauge (Min) 8 AWG
Wire Gauge (Max) 20 AWG
Current 50A
Number of Levels 1
Voltage 600V
Termination Style Screw - Rising Cage Clamp
Current Rating 41A
Reach Compliance Code unknown
Insulation Height 1.085 27.55mm
Pitch 0.400 10.16mm
Additional Feature PA, UL 94V0
Voltage - Rated 1kV
Number of Rows 1
Color Green
Number of Positions 6
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PC
Published 2002
Packaging Bulk
Physical
Weight 49.900008g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Silver
Supply Chain
Factory Lead Time 4 Weeks
