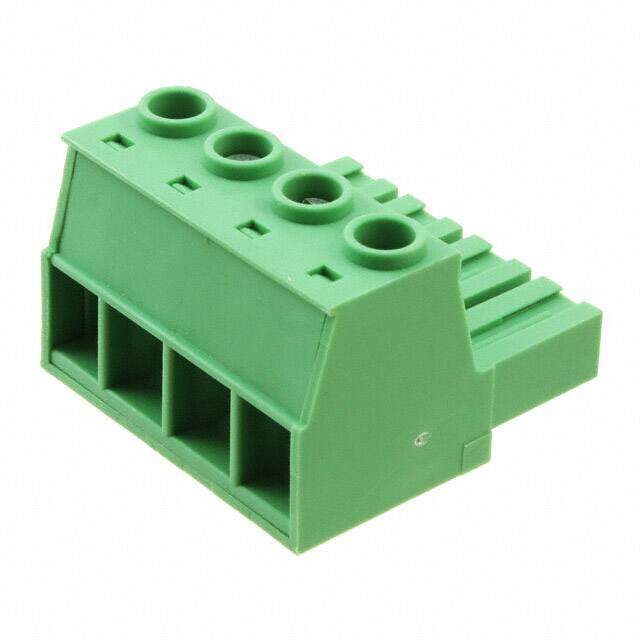

1913523
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 4POS STR 10.16MM
PDF
/
Buying Options
Total Price: USD $12.06
Unit Price: USD $12.0648
≥1 USD $12.0648
Inventory: 153
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Silver
Mount Free Hanging, Plug-In
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 33.190006g
Technical
Packaging Bulk
Published 2002
Series COMBICON PC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 1kV
Pitch 0.400 10.16mm
Orientation Straight
Depth 27.55mm
Insulation Height 1.085 27.55mm
Current Rating 41A
Termination Style Screw - Rising Cage Clamp
Approval Agency UL
Voltage 600V
Number of Levels 1
Current 50A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 8 AWG
Number of Poles 4
Number of Decks 1
Wire Gauge or Range - AWG 8-20 AWG
Voltage - IEC 1kV
Torque - Screw 1.2-1.5 Nm (10.6-13.3 Lb-In)
Number of Ways 4
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.75-10mm2
Wire Strip Length 12mm
Current - IEC 41A
Screw Size M4
Dimensions
Height 39mm
Length 39.68mm
Width 39mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
