1913507
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

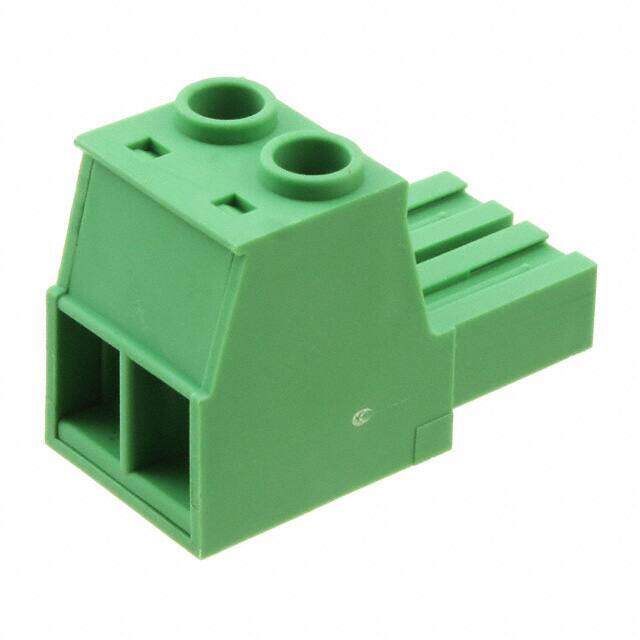

TERM BLOCK PLUG 2POS STR 10.16MM
PDF
/
Buying Options
Total Price: USD $6.02
Unit Price: USD $6.0192
≥1 USD $6.0192
Inventory: 164
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Silver
Mount Cable, Free Hanging, Plug-In
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 16.86g
Technical
Packaging Bulk
Published 2002
Series COMBICON PC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 1kV
HTS Code 8536.69.40.40
Pitch 0.400 10.16mm
Orientation Right Angle
Depth 39mm
Insulation Height 1.085 27.55mm
Reach Compliance Code not_compliant
Current Rating 41A
Termination Style Screw - Rising Cage Clamp
Approval Agency UL
Number of Contacts 2
Voltage 600V
Max Supply Voltage 1kV
Max Current Rating 41A
Number of Levels 1
Current 50A
Wire Gauge (Max) 8 AWG
Wire Gauge (Min) 18 AWG
Number of Decks 1
Wire Gauge or Range - AWG 8-20 AWG
Voltage - IEC 1kV
Torque - Screw 1.2-1.5 Nm (10.6-13.3 Lb-In)
Number of Ways 2
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.75-10mm2
Wire Strip Length 12mm
Screw Size M4
Dimensions
Height 27.55mm
Length 19.36mm
Width 39mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
