1912841
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

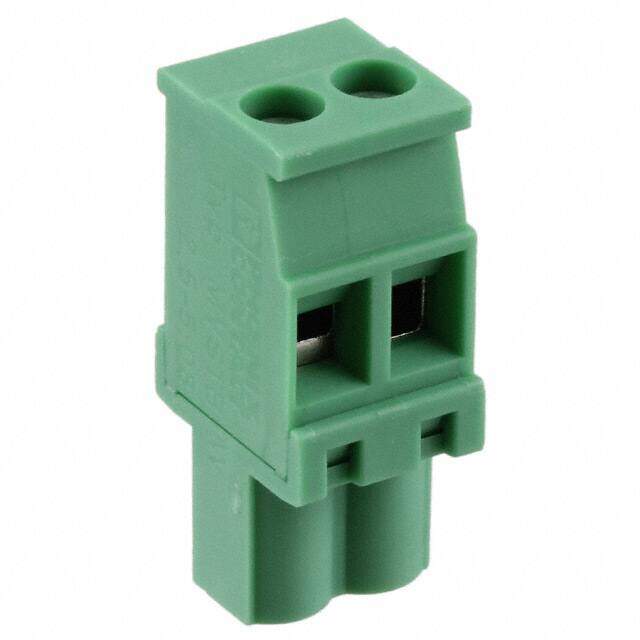

Terminal block; PCB; Plug; Female Sockets; 2 position; 16A; 630V
PDF
/
Buying Options
Total Price: USD $1.96
Unit Price: USD $1.9624
≥1 USD $1.9624
≥10 USD $1.90696
≥100 USD $1.782
≥500 USD $1.63944
≥1000 USD $1.608746
Inventory: 153
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 4.240011g
Technical
Packaging Bulk
Published 2001
Series COMBICON MVSTBW
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 300V
Additional Feature PA, UL 94V0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Orientation Straight
Insulation Height 1.024 26.01mm
Current Rating 10A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 2
Voltage 300V
Max Current Rating 16A
Number of Levels 1
Current 16A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 30 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 2
Safety Approval UL
Plug Wire Entry 270°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
Dimensions
Height 26mm
Length 10.16mm
Width 12.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
