1912304
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

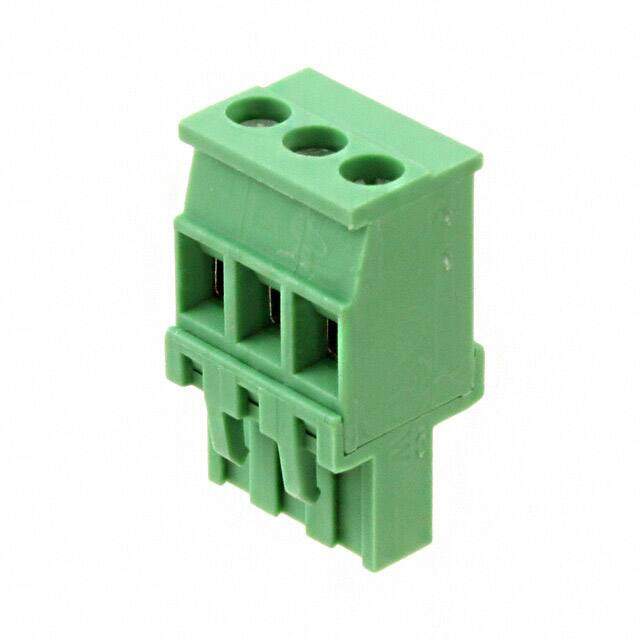

Pluggable Terminal Blocks 3 Pos 5mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $2.83
Unit Price: USD $2.825882
≥1 USD $2.825882
≥10 USD $2.665925
≥100 USD $2.515021
≥500 USD $2.37266
≥1000 USD $2.238362
Inventory: 9342
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 6.35001g
Technical
Packaging Bulk
Published 2001
Series COMBICON MVSTBR
Feature Retention Latches (Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 3
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PA, UL 94V0
Pitch 0.197 5.00mm
Depth 9.4mm
Insulation Height 1.024 26.01mm
Current Rating 16A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 16A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 3
Safety Approval UL
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
Wire Cross Section 2.5 mm2
Dimensions
Length 10.54mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
