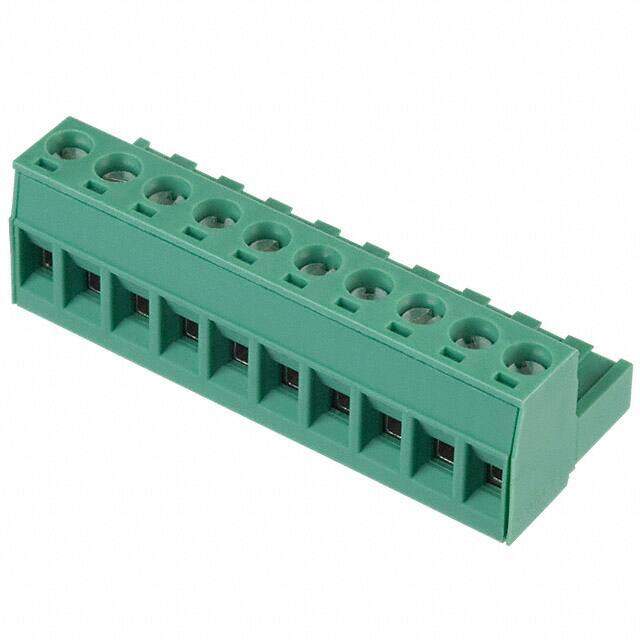

1912045
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 10 Pos 5.08mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $11.67
Unit Price: USD $11.669505
≥1 USD $11.669505
≥10 USD $11.008969
≥100 USD $10.385821
≥500 USD $9.797941
≥1000 USD $9.243342
Inventory: 8946
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 50.8mm
Length 15mm
Height 18.2mm
Technical
Wire Cross Section 2.5 mm2
Screw Size M3
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 10
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 16A
Number of Levels 1
Max Current Rating 16A
Voltage 300V
Number of Contacts 10
Approval Agency CB, VDE, cULus
Termination Style Screw - Rising Cage Clamp
Current Rating 16A
Reach Compliance Code unknown
Insulation Height 0.591 15.00mm
Depth 15mm
Orientation Right Angle
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V0
Voltage - Rated 250V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
Series COMBICON MSTB
Published 2001
Packaging Bulk
Physical
Weight 16.95001g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel, Plug-In
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
