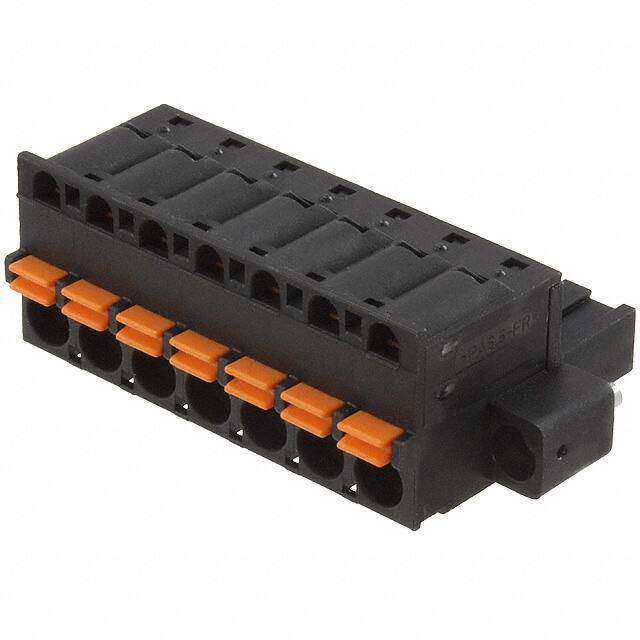

1911680
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 7POS STR 5.08MM
PDF
/
Buying Options
Total Price: USD $6.39
Unit Price: USD $6.3888
≥1 USD $6.3888
Inventory: 93
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 13.560002g
Technical
Packaging Bulk
Published 2010
Series COMBICON FKC
Feature Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Black
Gender Male
Voltage - Rated 250V
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Depth 10mm
Insulation Height 0.591 15.00mm
Current Rating 12A
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Number of Positions Per Level 7
Dimensions
Length 10mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
