1911253
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

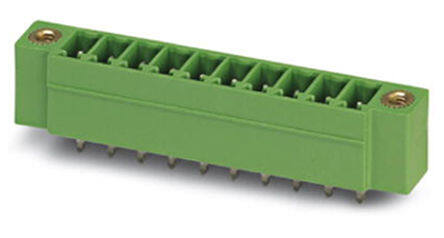

TERM BLOCK HEADER GREEN
PDF
/
Inventory: 1132
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Silver, Tin
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Packaging Bulk
Published 2015
Series COMBICON EMC
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 11
Color Green
Number of Rows 1
Additional Feature PBT, 94V-0
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.362 9.20mm
Termination Style Press-Fit
Contact Tail Length 0.134 3.40mm
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 160V
Number of Ways 11
Safety Approval UL
Header Orientation Vertical
Current - IEC 8A
Rated Current 8A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
