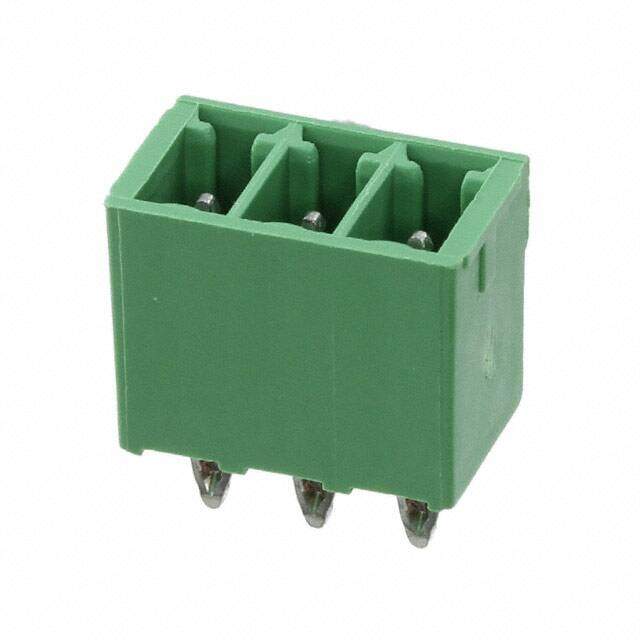

1911020 image
Favorite
1911020 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 3 Pos 3.5mm pitch Press In Header
PDF
/
Inventory: 1107
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 3 Weeks

Physical

Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 789.987811mg

Technical

Packaging Bulk
Published 2010
Series COMBICON EMCV
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature PBT, 94V-0
Pitch 0.138 3.50mm
Insulation Height 0.362 9.20mm
Current Rating 8A
Termination Style Press-Fit
Voltage 300V
Contact Tail Length 0.150 3.81mm
Number of Levels 1
Current 8A
Number of Decks 1
Voltage - IEC 250V
Number of Ways 3
Safety Approval UL
Header Orientation Vertical

Dimensions

Height 11.9mm
Length 7.25mm
Width 12.6mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
