1911017
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

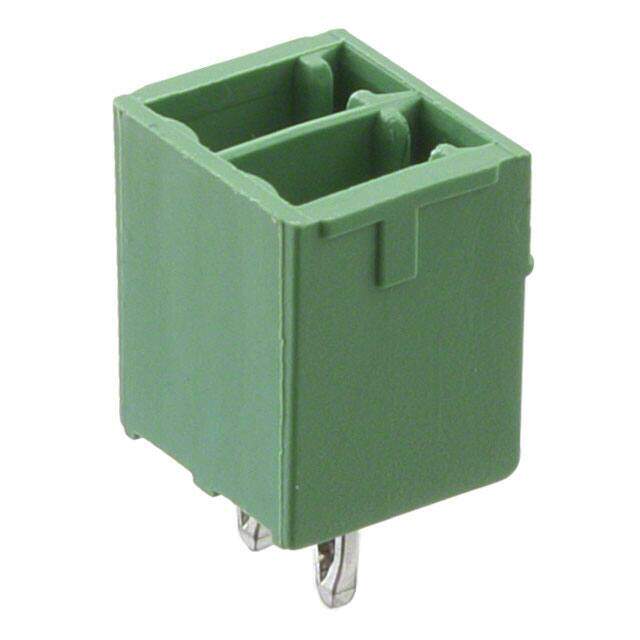

Pluggable Terminal Blocks 2 Pos 3.5mm pitch Press In Header
PDF
/
Inventory: 1152
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 12.6mm
Length 31.75mm
Height 8.4mm
Technical
Header Orientation Vertical
Voltage - IEC 250V
Current 8A
Number of Levels 1
Contact Tail Length 0.150 3.81mm
Voltage 300V
Termination Style Press-Fit
Current Rating 8A
Insulation Height 0.362 9.20mm
Depth 14.85mm
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Voltage - Rated 160V
Color Green
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 2
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series COMBICON EMCV
Published 2011
Packaging Bulk
Physical
Weight 540.001716mg
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 3 Weeks
