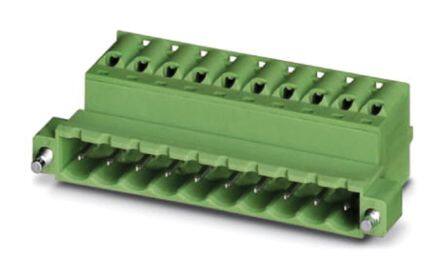

1910885 image
Favorite
1910885 image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Phoenix Contact COMBICON FKIC Series 5mm Pitch Pluggable Terminal Block, Inverted Plug with Spring Cage Termination
PDF
/
Inventory: 1261
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Fastening Method SPRING LOADED
Wire Cross Section 2.5 mm2
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 8
Voltage - IEC 320V
Current - UL 10A
Wire Gauge or Range - AWG 12-26 AWG
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Termination Style Screwless - Push-In Spring
Current Rating 12A
Insulation Height 0.591 15.00mm
Pitch 0.197 5.00mm
Additional Feature PA, 94V-0
Voltage - Rated 630V
Gender Female
Number of Rows 1
Color Green
Number of Positions 8
Type Plug, Male Pins
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON FKIC
Published 2015
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
