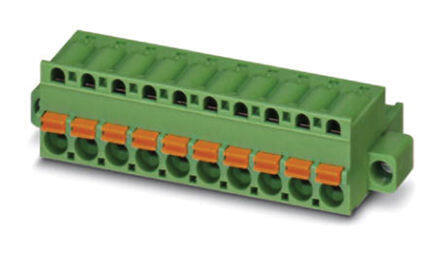

1910461
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 13 Pos 5mm pitch Plug 24-12AWG Spring
PDF
/
Buying Options
Total Price: USD $27.51
Unit Price: USD $27.510507
≥1 USD $27.510507
≥200 USD $10.977157
≥500 USD $10.610858
≥1000 USD $10.429678
Inventory: 1097
Minimum: 1
-
+
Technical Details
Technical
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Number of Ways 13
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Wire Cross Section 2.5 mm2
Fastening Method SPRING LOADED
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 10A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 12A
Insulation Height 0.591 15.00mm
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 13
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
Series COMBICON FKC
Published 2011
Packaging Bulk
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Physical
Weight 21.349998g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
