1910416
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

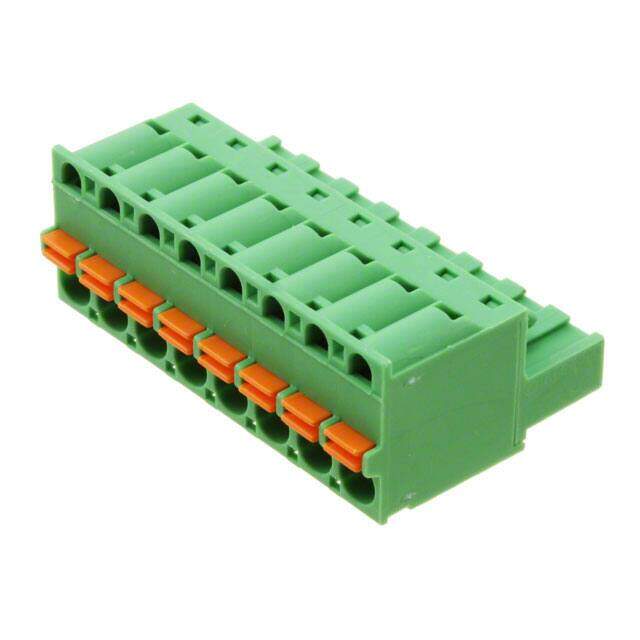

TERM BLOCK PLUG 8POS STR 5MM
PDF
/
Buying Options
Total Price: USD $6.68
Unit Price: USD $6.6792
≥1 USD $6.6792
≥10 USD $6.49968
≥100 USD $6.07464
≥500 USD $5.588704
≥1000 USD $5.484054
Inventory: 85
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 1.200205kg
Technical
Packaging Bulk
Published 2010
Series COMBICON FKC
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PA, 94V-0
Pitch 0.197 5.00mm
Orientation Straight
Depth 25.6mm
Insulation Height 0.591 15.00mm
Current Rating 12A
Termination Style Screwless - Leg Spring, Push-In Spring
Approval Agency CB, CSA, VDE, cULus
Number of Contacts 8
Voltage 300V
Max Supply Voltage 320V
Max Current Rating 12A
Number of Levels 1
Current 12A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Current - UL 10A
Voltage - IEC 630V
Number of Ways 8
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Wire Cross Section 2.5 mm2
Fastening Method SPRING LOADED
Dimensions
Height 25.6mm
Length 40.1mm
Width 40.1mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
